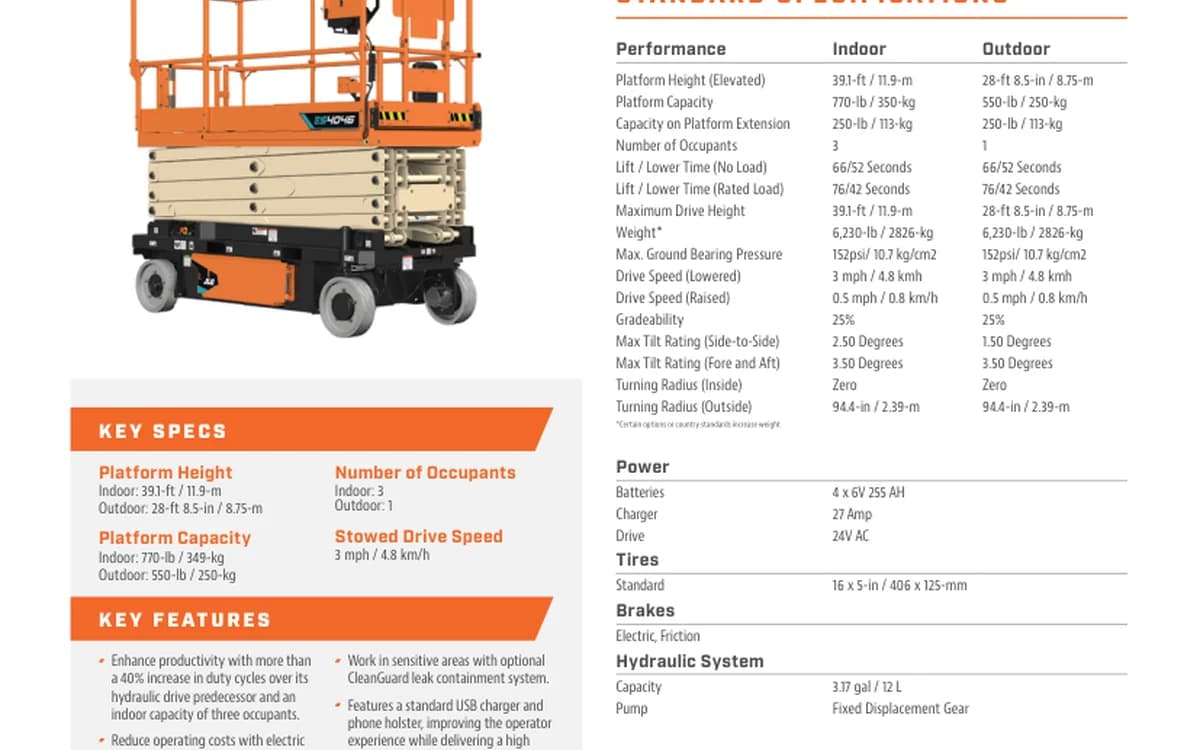

JLG ES4046 shown in its official manufacturer specification

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification · page 1

Scissor LiftManufacturer country: United States

ES4046

13.75 m working height.

Working height
13.75 m
Vehicle weight
2,826 kg
Stowed height
2.53 m
Transport width
1.17 m
Transport length
2.7 m
Power
Electric
Configuration-dependent valuesRead the capacity and reach note ↓
ElectricWheeledES Series
Open PDFSource

Primary manufacturer source

Specification PDF

Open full screen
Official specificationPrimary sourceFull screen

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification - page 1

Normalized data

Specifications

Empty fields are omitted

Working envelope

Working height
13.75 m

Capacity

Indoor occupants
2
Outdoor occupants
1

Dimensions

Machine width
1.17 m
Machine length
2.7 m
Stowed height
2.53 m

Weight

Machine weight
2,826 kg

Mobility

Drive
Wheeled
Drive speed
4.8 km/h
Gradeability
25%

Power

Power source
Electric

Before use

Safety & operating limits

Risk assessment

Complete a site-specific risk assessment and rescue plan before work starts.

Working envelope

Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.

Wind conditions

Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.

Competent selection

Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.

Model questions

JLG ES4046 FAQ

What is the working height of the JLG ES4046?

The published working height is 13.75 m. Working-height conventions can vary by market and configuration, so confirm the applicable manufacturer document before use.

How wide is the ES4046?

The listed transport width is 1.17 m. Check the complete stowed envelope, mirrors, stabilisers, tyres or tracks and the route clearance before transport or setup.

How much does the ES4046 weigh?

The listed machine weight is 2,826 kg. Actual transport weight may vary with chassis, fuel, batteries, basket and optional equipment.

What powers the ES4046?

This machine is listed as electric powered. Confirm the exact power configuration and charging or refuelling requirements in the source document.

What transport dimensions should be checked for the ES4046?

The published transport dimensions include a length of 2.7 m and a stowed height of 2.53 m. Confirm the complete configured envelope before loading, towing or entering a site.

Where can the ES4046 be used?

The catalogue flags this scissor lift for indoor and outdoor use. Site conditions, wind limits, ground bearing capacity and the manufacturer's operating instructions still determine suitability.
