Normalized data
Specifications
Working envelope
- Working height
- 30 m
- Horizontal outreach
- 15.7 m
Capacity
- Safe working load
- 200 kg

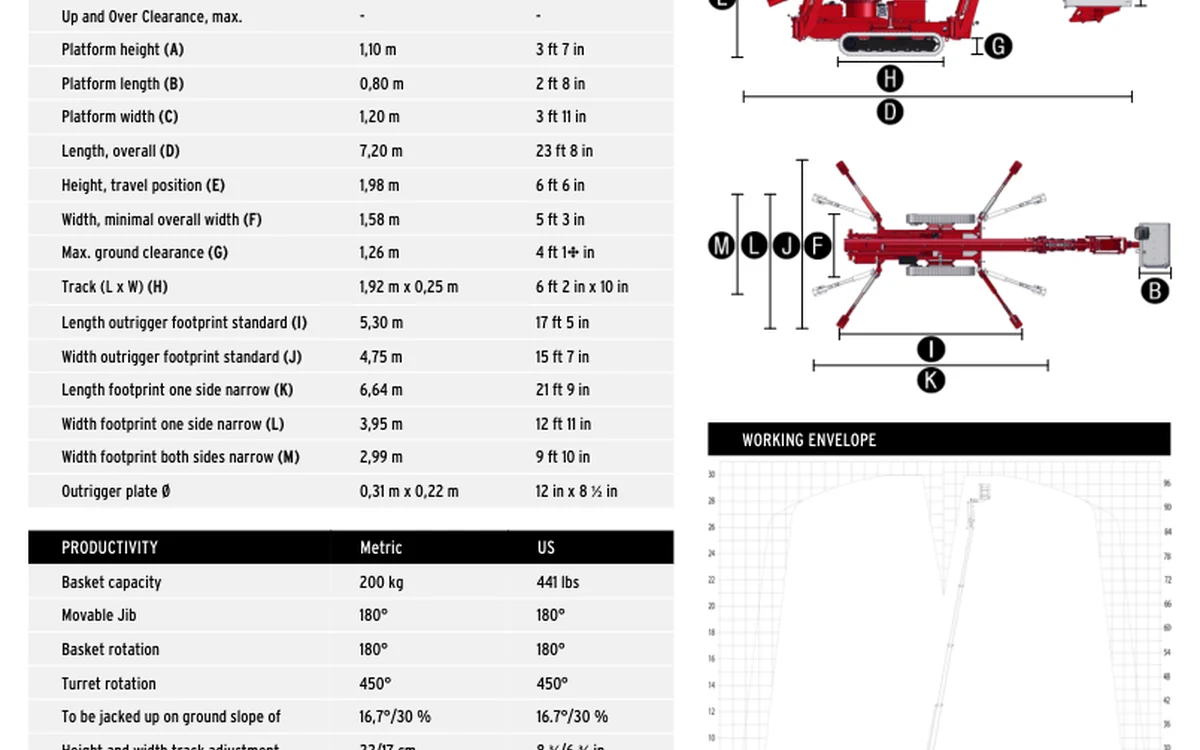

Dimensions
- Machine width
- 1.58 m
- Machine length
- 7.2 m
- Stowed height
- 1.98 m
Weight
- Machine weight
- 4,225 kg
Mobility
- Drive
- Tracked
Power
- Power source
- Bi-energy
Before use
Safety & operating limits
Risk assessment
Complete a site-specific risk assessment and rescue plan before work starts.
Working envelope
Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.
Wind conditions
Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.
Competent selection
Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.
