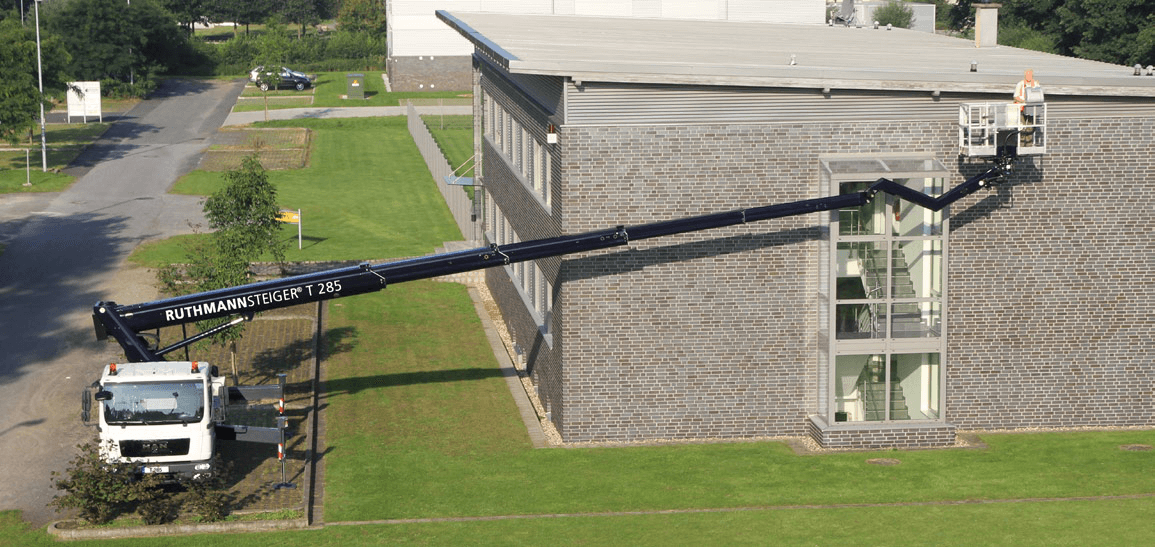

Ruthmann STEIGER T 285 truck-mounted platform reaching across a building

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification · page 1

Truck MountedManufacturer country: Germany

STEIGER T 285

Compact 7.49 t-class telescopic truck mount with dynamic horizontal/vertical stabilisation and a 320 kg basket.

Working height
28.5 m
Max outreach
21.1 m
Basket capacity
320 kg
Vehicle weight
7,490 kg
Platform height
26.5 m
Stowed height
3.56 m
Transport length
8.19 m
Power
Diesel
Configuration-dependent valuesRead the capacity and reach note ↓
Truck mountedTelescopic boomDynamic stabilisationC1-class chassis
Open PDFSource

Primary manufacturer source

Specification PDF

Open full screen
Official specificationPrimary sourceFull screen

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification - page 1

Normalized data

Specifications

Empty fields are omitted

Working envelope

Working height
28.5 m
Platform height
26.5 m
Horizontal outreach
21.1 m

Capacity

Safe working load
320 kg
Outdoor occupants
3

Dimensions

Machine length
8.19 m
Stowed height
3.56 m
Platform
1.7 × 0.86 m

Weight

Machine weight
7,490 kg

Mobility

Drive
Truck mounted

Power

Power source
Diesel

Before use

Safety & operating limits

Risk assessment

Complete a site-specific risk assessment and rescue plan before work starts.

Working envelope

Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.

Wind conditions

Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.

Competent selection

Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.

Model questions

Ruthmann STEIGER T 285 FAQ

What is the working height of the Ruthmann STEIGER T 285?

The published working height is 28.5 m. Working-height conventions can vary by market and configuration, so confirm the applicable manufacturer document before use.

What is the platform height of the Ruthmann STEIGER T 285?

The platform height is listed as 26.5 m. Platform height is different from working height because it does not include the operator's reach above the platform.

How much horizontal outreach does the STEIGER T 285 have?

The published maximum horizontal outreach is 21.1 m. Outreach can reduce with basket load, slew angle, stabiliser position and optional equipment.

What is the platform capacity of the STEIGER T 285?

The listed safe working load is 320 kg. Confirm whether that capacity applies throughout the required working envelope and configuration.

How much does the STEIGER T 285 weigh?

The listed machine weight is 7,490 kg. Actual transport weight may vary with chassis, fuel, batteries, basket and optional equipment.

What powers the STEIGER T 285?

This machine is listed as diesel powered. Confirm the exact power configuration and charging or refuelling requirements in the source document.

What transport dimensions should be checked for the STEIGER T 285?

The published transport dimensions include a length of 8.19 m and a stowed height of 3.56 m. Confirm the complete configured envelope before loading, towing or entering a site.

Where can the STEIGER T 285 be used?

The catalogue flags this truck mounted for outdoor use. Site conditions, wind limits, ground bearing capacity and the manufacturer's operating instructions still determine suitability.
