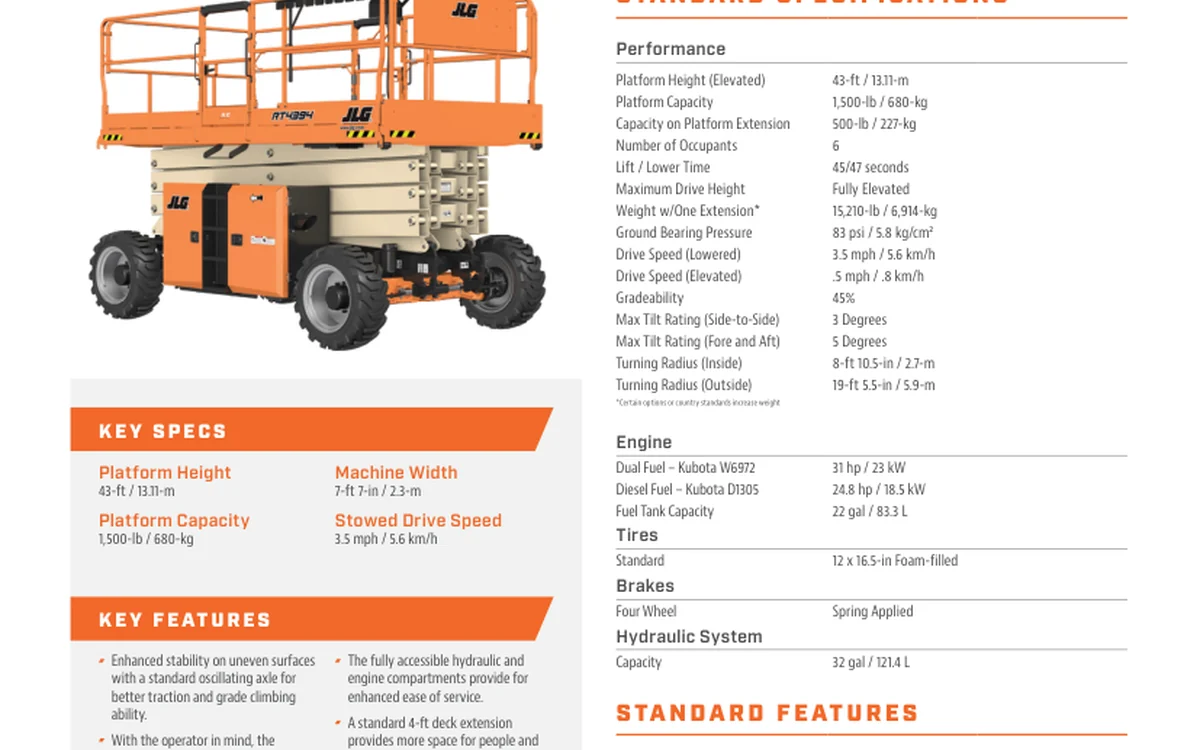

JLG RT4394 shown in its official manufacturer specification

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification · page 1

Scissor LiftManufacturer country: United States

RT4394

15.11 m working height, 568 kg platform capacity.

Working height
15.11 m
Basket capacity
568 kg
Vehicle weight
6,486 kg
Platform height
13.11 m
Stowed height
1.84 m
Transport width
2.35 m
Transport length
3.92 m
Power
Diesel
Configuration-dependent valuesRead the capacity and reach note ↓
DieselWheeledRT Series
Open PDFSource

Primary manufacturer source

Specification PDF

Open full screen
Official specificationPrimary sourceFull screen

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification - page 1

Normalized data

Specifications

Empty fields are omitted

Working envelope

Working height
15.11 m
Platform height
13.11 m

Capacity

Safe working load
568 kg
Indoor occupants
6
Outdoor occupants
6

Dimensions

Machine width
2.35 m
Machine length
3.92 m
Stowed height
1.84 m
Platform
1.79 × 3.86 m

Weight

Machine weight
6,486 kg

Mobility

Drive
Wheeled
Drive speed
5.63 km/h
Gradeability
45%

Power

Power source
Diesel

Before use

Safety & operating limits

Risk assessment

Complete a site-specific risk assessment and rescue plan before work starts.

Working envelope

Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.

Wind conditions

Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.

Competent selection

Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.

Model questions

JLG RT4394 FAQ

What is the working height of the JLG RT4394?

The published working height is 15.11 m. Working-height conventions can vary by market and configuration, so confirm the applicable manufacturer document before use.

What is the platform height of the JLG RT4394?

The platform height is listed as 13.11 m. Platform height is different from working height because it does not include the operator's reach above the platform.

What is the platform capacity of the RT4394?

The listed safe working load is 568 kg. Confirm whether that capacity applies throughout the required working envelope and configuration.

How wide is the RT4394?

The listed transport width is 2.35 m. Check the complete stowed envelope, mirrors, stabilisers, tyres or tracks and the route clearance before transport or setup.

How much does the RT4394 weigh?

The listed machine weight is 6,486 kg. Actual transport weight may vary with chassis, fuel, batteries, basket and optional equipment.

What powers the RT4394?

This machine is listed as diesel powered. Confirm the exact power configuration and charging or refuelling requirements in the source document.

What transport dimensions should be checked for the RT4394?

The published transport dimensions include a length of 3.92 m and a stowed height of 1.84 m. Confirm the complete configured envelope before loading, towing or entering a site.

Where can the RT4394 be used?

The catalogue flags this scissor lift for outdoor use. Site conditions, wind limits, ground bearing capacity and the manufacturer's operating instructions still determine suitability.
