Normalized data

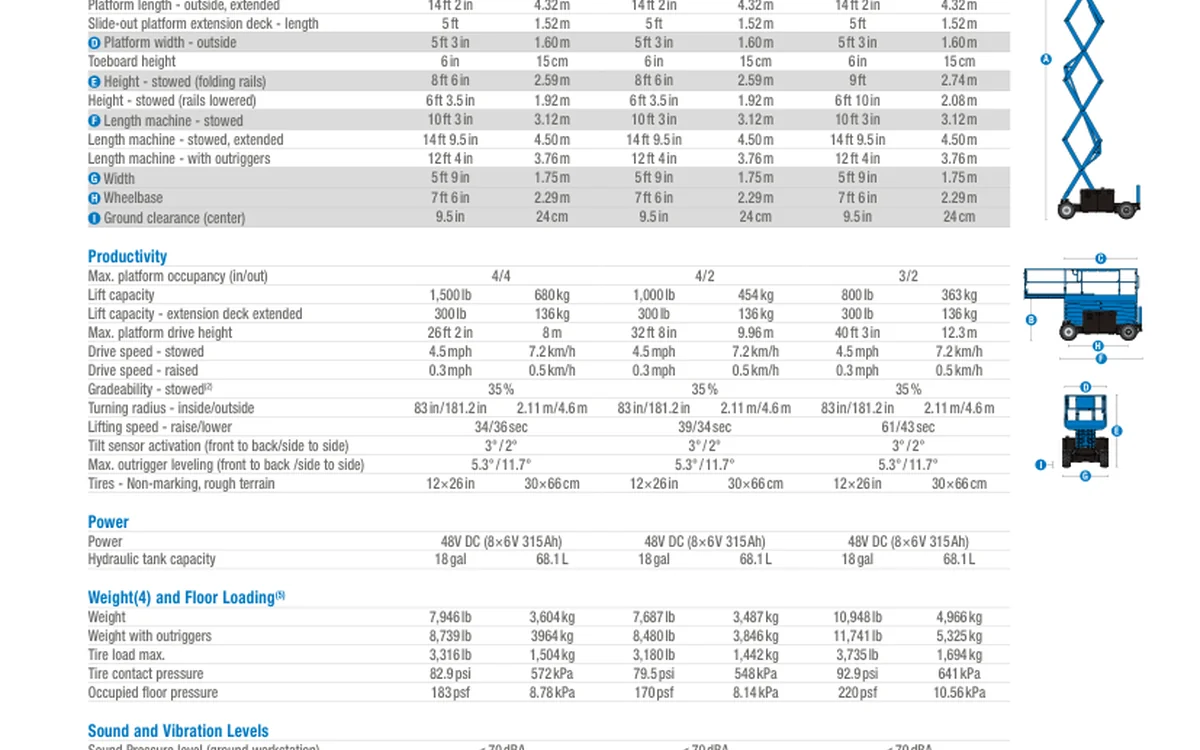

Specifications
Working envelope
- Working height
- 12 m
- Platform height
- 10 m
Capacity
- Safe working load
- 453 kg
- Indoor occupants
- 4
- Outdoor occupants
- 2
Dimensions
- Machine width
- 1.76 m
- Machine length
- 3.53 m
- Stowed height
- 1.5 m
- Platform
- 3.3 × 1.6 m
Weight
- Machine weight
- 4,276 kg
Mobility
- Drive
- Wheeled
- Drive speed
- 5.6 km/h
- Gradeability
- 40%
Power
- Power source
- Electric
Before use
Safety & operating limits
Risk assessment
Complete a site-specific risk assessment and rescue plan before work starts.
Working envelope
Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.
Wind conditions
Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.
Competent selection
Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.
