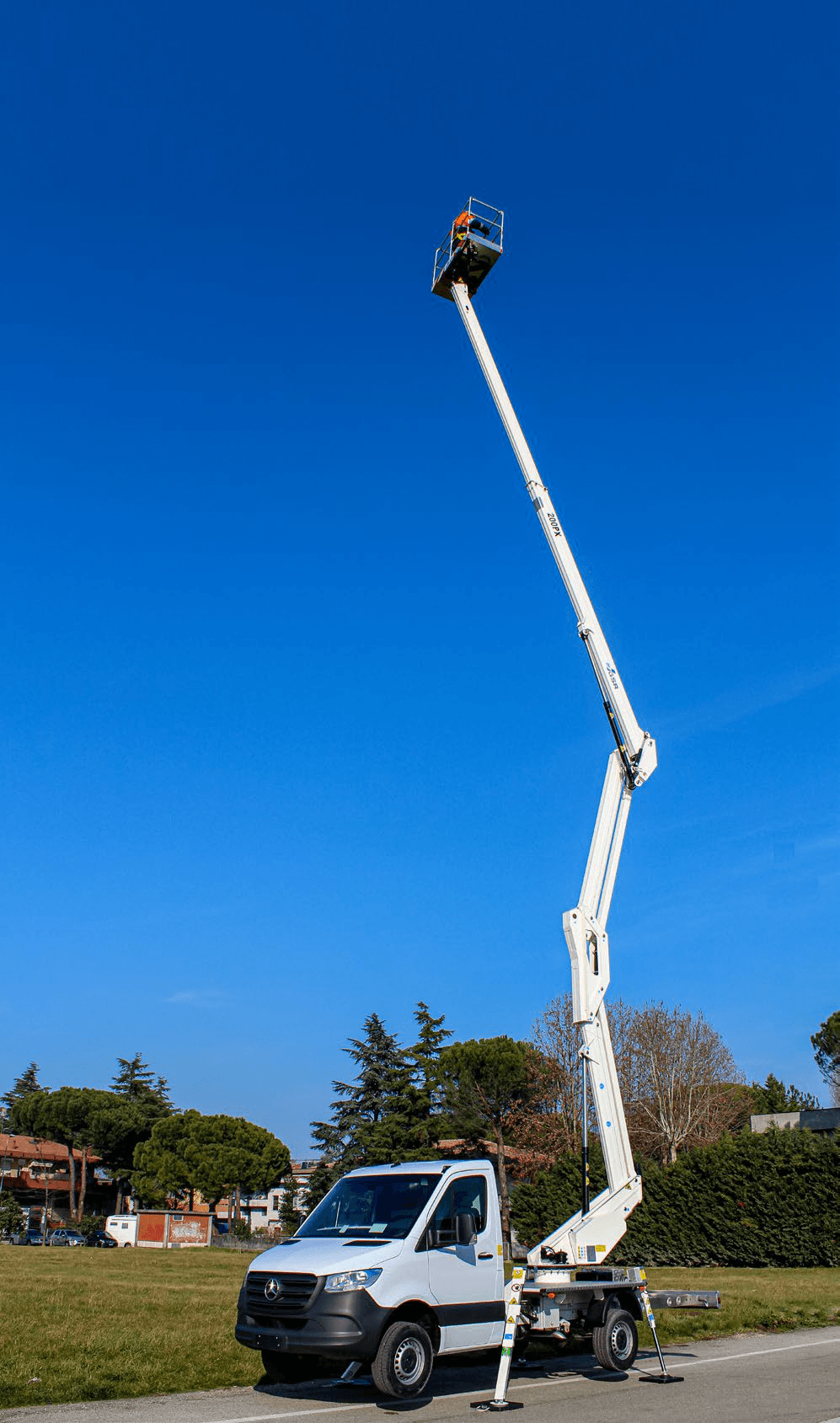

GSR B200PX Compact IV truck-mounted platform fully elevated

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification · page 1

Truck MountedManufacturer country: Italy

B200PX Compact IV

Compact double-articulated truck mount with in-shape stabilisation and unrestricted 250 kg basket capacity across its published envelope.

Working height
20.6 m
Max outreach
9 m
Basket capacity
250 kg
Vehicle weight
3,500 kg
Power
Diesel
Configuration-dependent valuesRead the capacity and reach note ↓
Truck mountedDouble articulatedIn-shape stabilisers3.5 t chassis
Open PDFSource

Primary manufacturer source

Specification PDF

Open full screen
Official specificationPrimary sourceFull screen

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification - page 1

Normalized data

Specifications

Empty fields are omitted

Working envelope

Working height
20.6 m
Horizontal outreach
9 m

Capacity

Safe working load
250 kg
Outdoor occupants
2

Weight

Machine weight
3,500 kg

Mobility

Drive
Truck mounted

Power

Power source
Diesel

Before use

Safety & operating limits

Risk assessment

Complete a site-specific risk assessment and rescue plan before work starts.

Working envelope

Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.

Wind conditions

Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.

Competent selection

Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.

Model questions

GSR B200PX Compact IV FAQ

What is the working height of the GSR B200PX Compact IV?

The published working height is 20.6 m. Working-height conventions can vary by market and configuration, so confirm the applicable manufacturer document before use.

How much horizontal outreach does the B200PX Compact IV have?

The published maximum horizontal outreach is 9 m. Outreach can reduce with basket load, slew angle, stabiliser position and optional equipment.

What is the platform capacity of the B200PX Compact IV?

The listed safe working load is 250 kg. Confirm whether that capacity applies throughout the required working envelope and configuration.

How much does the B200PX Compact IV weigh?

The listed machine weight is 3,500 kg. Actual transport weight may vary with chassis, fuel, batteries, basket and optional equipment.

What powers the B200PX Compact IV?

This machine is listed as diesel powered. Confirm the exact power configuration and charging or refuelling requirements in the source document.

Where can the B200PX Compact IV be used?

The catalogue flags this truck mounted for outdoor use. Site conditions, wind limits, ground bearing capacity and the manufacturer's operating instructions still determine suitability.
