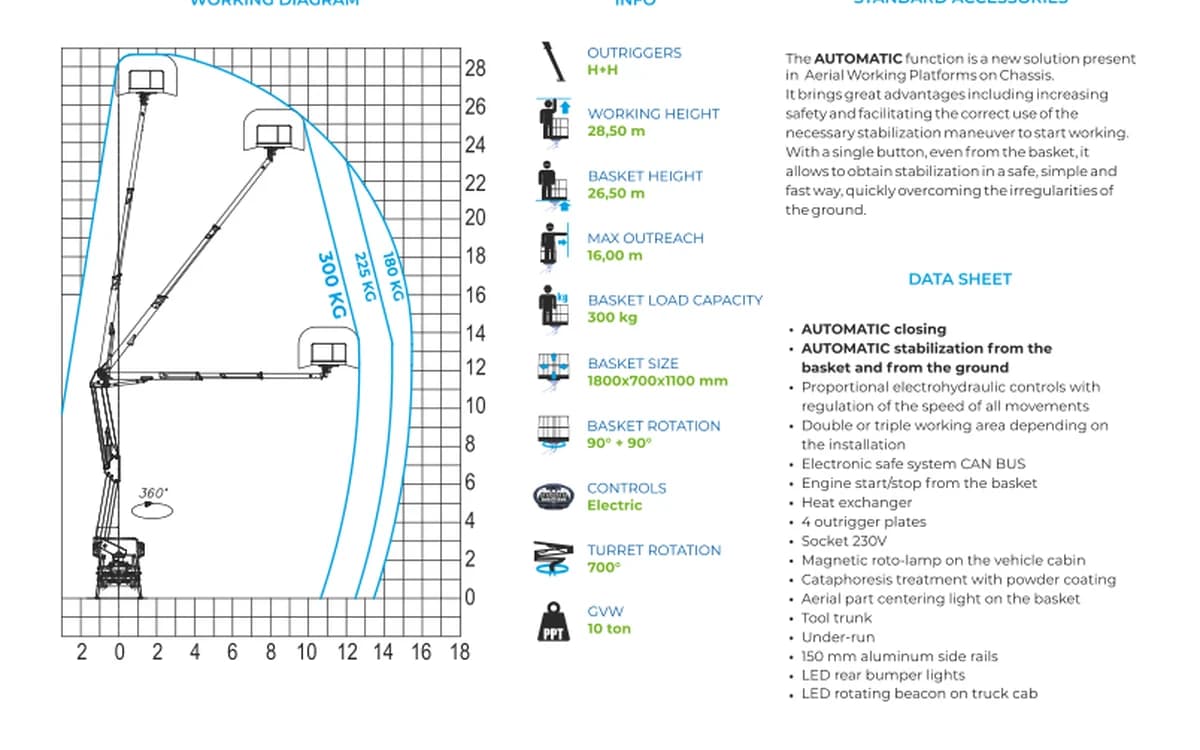

CTE ZED 28 AUTOMATIC shown in its official manufacturer specification

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification · page 1

Truck MountedManufacturer country: Italy

ZED 28 AUTOMATIC

28.5 m working height, 15 m outreach, 300 kg platform capacity.

Working height
28.5 m
Max outreach
15 m
Basket capacity
300 kg
Platform height
26.5 m
Configuration-dependent valuesRead the capacity and reach note ↓
WheeledTruck-mounted platform
Open PDFSource

Primary manufacturer source

Specification PDF

Open full screen
Official specificationPrimary sourceFull screen

Your browser cannot display the PDF inline.

Open the specification PDF
Original specification - page 1

Normalized data

Specifications

Empty fields are omitted

Working envelope

Working height
28.5 m
Platform height
26.5 m
Horizontal outreach
15 m

Capacity

Safe working load
300 kg

Mobility

Drive
Wheeled

Before use

Safety & operating limits

Risk assessment

Complete a site-specific risk assessment and rescue plan before work starts.

Working envelope

Confirm outreach at the intended basket load, slew angle, stabilizer position and chassis configuration.

Wind conditions

Check the applicable wind rating in the current manufacturer manual and stop work when limits are exceeded.

Competent selection

Verify ground conditions, outrigger loads, access, exclusion zones and operator requirements with a competent supplier.

Model questions

CTE ZED 28 AUTOMATIC FAQ

What is the working height of the CTE ZED 28 AUTOMATIC?

The published working height is 28.5 m. Working-height conventions can vary by market and configuration, so confirm the applicable manufacturer document before use.

What is the platform height of the CTE ZED 28 AUTOMATIC?

The platform height is listed as 26.5 m. Platform height is different from working height because it does not include the operator's reach above the platform.

How much horizontal outreach does the ZED 28 AUTOMATIC have?

The published maximum horizontal outreach is 15 m. Outreach can reduce with basket load, slew angle, stabiliser position and optional equipment.

What is the platform capacity of the ZED 28 AUTOMATIC?

The listed safe working load is 300 kg. Confirm whether that capacity applies throughout the required working envelope and configuration.

Where can the ZED 28 AUTOMATIC be used?

The catalogue flags this truck mounted for outdoor use. Site conditions, wind limits, ground bearing capacity and the manufacturer's operating instructions still determine suitability.
